Hydraulic pump power : 4kw
Systm pressure : 20 mpa
Heating pipe power : 54kw
Certification : CE、ISO 9001
Max.platen opening : 200mm
Maximum temperature : 120℃
Hot oil pump power : 2.2kw
Delivery Time : 15-20Work days
Working level : 2-layer
Payment Terms : T/T
Overall dimensions : 4300*1800*2500mm
Packaging Details : Film with Foam
Place of Origin : China
MOQ : 1
Oil cylinder specification : 90mm * 10pcs
Brand Name : Henrriet
Weight (about) : 7200kg
Maximum pressure : 120 T
Price : Online/offline communication
Work platen size : 3000*1300*42mm

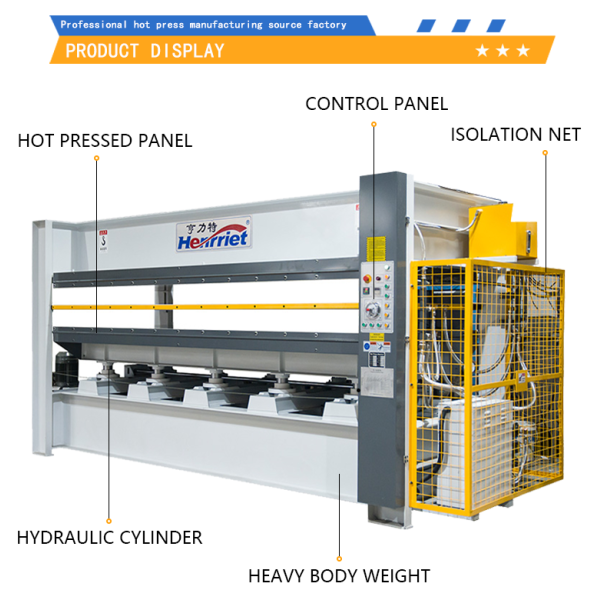

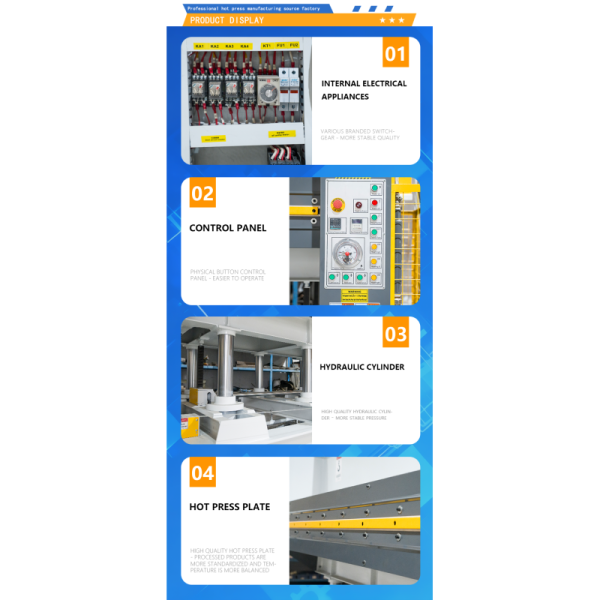

The customized short cycle double-layer laminating machine is a professional hot pressing equipment designed for high-precision and high-efficiency pressing and shaping of curtain wall decorative panels, ceiling decorative panels, solid wood multi-layer panels and other boards. Its core structure consists of a large tonnage hydraulic system, a double-layer independent working platform, a precise temperature control heating system, and a physical and electrical control system.
The equipment adopts a double-layer laminated structure design, forming two independent pressing spaces from top to bottom, which can simultaneously process two layers of large panel materials. Compared with single-layer hot press machines, it achieves effective production capacity improvement.
| Maximum pressure | 120T |
| System pressure | 20 mpa |
| Work platen size | 3000*1300*42mm |
| Max. platen opening | 200mm |
| Maximum temperature | 120℃ |
| Working level | 2-layer |
| Oil cylinder specification | 90mm * 10pcs |
| Hydraulic pump power | 4kw |
| Hot oil pump power | 2.2kw |
| Heating pipe power | 54kw |
| Overall dimensions | 4300*1800*2500mm |
| Weight (about) | 7200kg |
|
|
